Sourcing aluminum forged rings from a qualified manufacturer in China is no longer a cost-only decision. Procurement managers, mechanical engineers, and quality teams now evaluate grain-flow integrity, alloy traceability, inspection deliverables, and production lead time with the same weight as unit price. Able Materials, based in Suzhou, Jiangsu — one of the world’s largest industrial manufacturing hubs — supplies custom aluminum forged rings, blocks, bars, tubes, discs, and machined parts to B2B buyers across aerospace, marine, energy, and heavy machinery sectors. This guide covers process selection, alloy specification, quality requirements, and how to request a factory quote with the technical inputs that shorten review cycles.
What Is an Aluminum Forged Ring — and When Should You Source from China?
An aluminum forged ring is a seamless or near-seamless circular component produced by applying controlled compressive force to aluminum alloy billets or preforms. Forging aligns grain flow circumferentially, which improves fatigue resistance and structural reliability compared with cast or fully machined-from-plate alternatives. For OEM and ODM programs that require repeatable mechanical properties, a dedicated aluminum forged rings manufacturer in China with in-house forging, heat treatment, and inspection can deliver specification-driven rings at production scale.
Forged Ring vs Rolled Ring vs Cast Aluminum Ring
Forged rings produced via open-die or closed-die routes suit heavy sections, flanged geometries, and lower-to-medium volume custom programs. Rolled rings — formed on CNC radial-axial ring rolling mills — excel at thin-wall, large-OD seamless components with tight concentricity. Cast aluminum rings cost less per blank but carry higher porosity risk and weaker grain orientation. For rotating equipment, pressure-boundary applications, and certified structural assemblies, forging or ring rolling is the default engineering choice.
Grain Flow, Strength, and Structural Reliability Compared
Circumferential grain flow in a properly forged ring supports higher tangential strength and improved fatigue life under cyclic loading. As a reference, 6061-T6 forged rings typically achieve tensile strength ≥320 MPa, yield strength ≥270 MPa, and elongation ≥10%; 7075-T6 grades reach ≥530 MPa tensile, ≥450 MPa yield, and ≥8% elongation when heat-treated and tested per applicable standards. These are not marketing figures — they are the mechanical baselines procurement teams should demand on material test certificates.
Cost, Lead Time, and MOQ: China Factory vs Local Supplier
China-based aluminum forged ring suppliers generally offer lower unit cost on custom alloys and large OD formats because forging presses, ring mills, and heat-treat furnaces are concentrated at industrial scale. Lead times for custom rings typically run 20–45 days depending on alloy availability, OD/ID ratio, and inspection level. Production MOQ commonly starts near 500 kg per specification, though stock or repeat-order programs may run lower. The cost advantage narrows when buyers require extensive third-party witnessing, NADCAP-adjacent process controls, or expedited air freight — factors that should appear in any serious factory price comparison.
Key Applications Driving Demand for China-Made Aluminum Rings
Aerospace & Defense
Aerospace programs specify 2xxx and 7xxx alloys — 2024, 2219, 7050, and 7075-T6 — for structural rings, launcher components, and high-load couplings. AS9100-aligned suppliers document heat-treatment cycles, dimensional reports, and UT records for audit readiness.
Marine & Offshore
5083, 5086, and 5A06 alloys provide corrosion resistance for shipbuilding, offshore platforms, and seawater-exposed hardware. Marine buyers pair alloy selection with UT inspection and salt-spray or intergranular corrosion test references on certificates.
Energy, Petrochemical & Heavy Machinery
Wind-turbine, compressor, and pressure-equipment programs use large-diameter aluminum forged rings as structural and rotating interfaces. Petrochemical buyers often require PMI verification and hardness mapping in addition to standard mechanical tests.
Automotive, Rail & Industrial Equipment
6082 and 6061-T6 rings serve suspension, rail bogie, and industrial gearbox applications where weight reduction and machinability matter. Many programs combine forging with CNC finishing through a single custom aluminum forging supplier to reduce handoff risk.
Aluminum Forged Ring Manufacturing Processes in China
Able Materials manufactures rings across open-die forging, closed-die forging, and ring rolling routes, selecting the process based on wall thickness, OD/ID ratio, tolerance class, and annual volume.

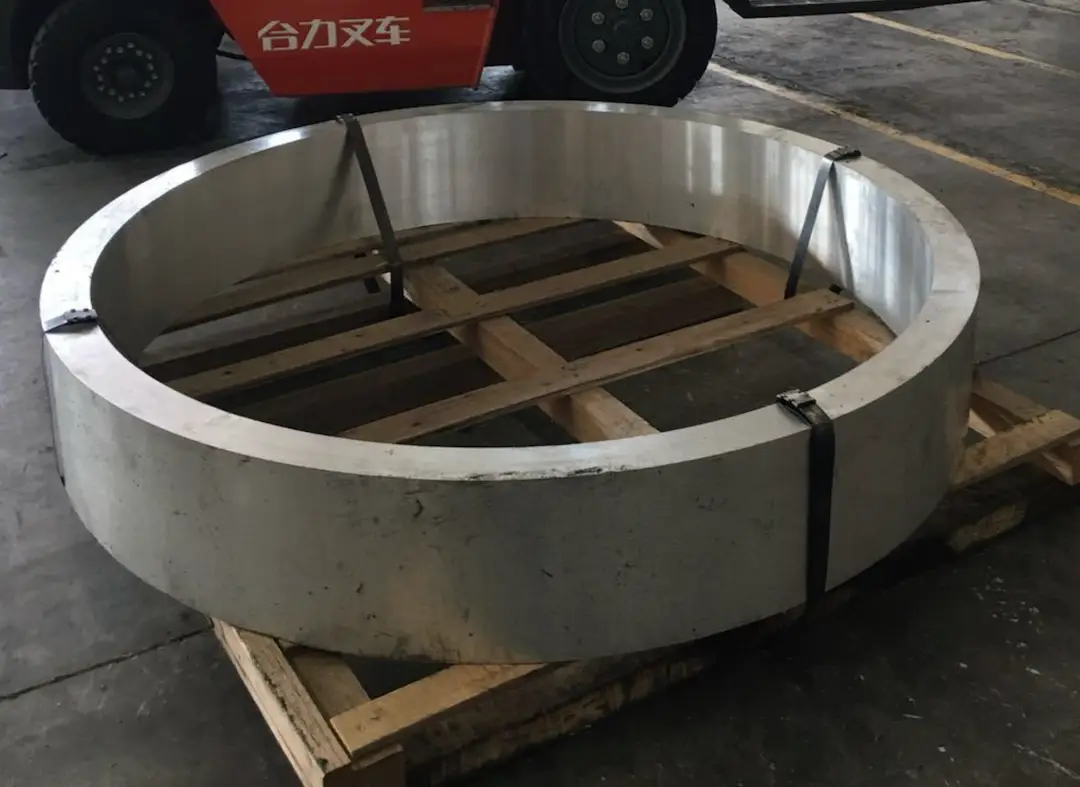

Open-Die Forging for Heavy-Section and Flanged Rings
Open-die forging uses repeated impression under a hydraulic press to expand OD, reduce wall thickness, and form flanges on large preforms. This route fits heavy-wall rings where ring rolling would be inefficient.
Typical OD Range, Wall Thickness, and Tooling Considerations
Able Materials’ ring envelope covers OD 500–2500 mm with forged lengths from 50–1200 mm, spanning 1xxx through 8xxx series aluminum. Heavy-section open-die rings above 1500 mm OD may require multi-stage reheating and intermediate UT — plan these steps into lead-time estimates.
Best Use Cases for Open-Die Aluminum Ring Forging
Specify open-die when flange features, non-uniform wall thickness, or prototype flexibility outweigh the per-piece efficiency of ring rolling. It is the preferred route for many aluminum forged blocks preforms that are subsequently trepanned and expanded into ring geometry.
Closed-Die Forging for High-Volume, Near-Net-Shape Rings
Closed-die forging produces repeatable near-net shapes for higher-volume programs, reducing machining stock and alloy waste. Tooling investment is front-loaded; economic breakeven typically appears above mid-thousands of pieces annually.
Dimensional Accuracy and Production Efficiency
Closed-die rings hold tighter as-forged profiles, which lowers CNC cycle time. Pair closed-die with 6xxx alloys for automotive and industrial programs where machinability and unit cost both rank high.

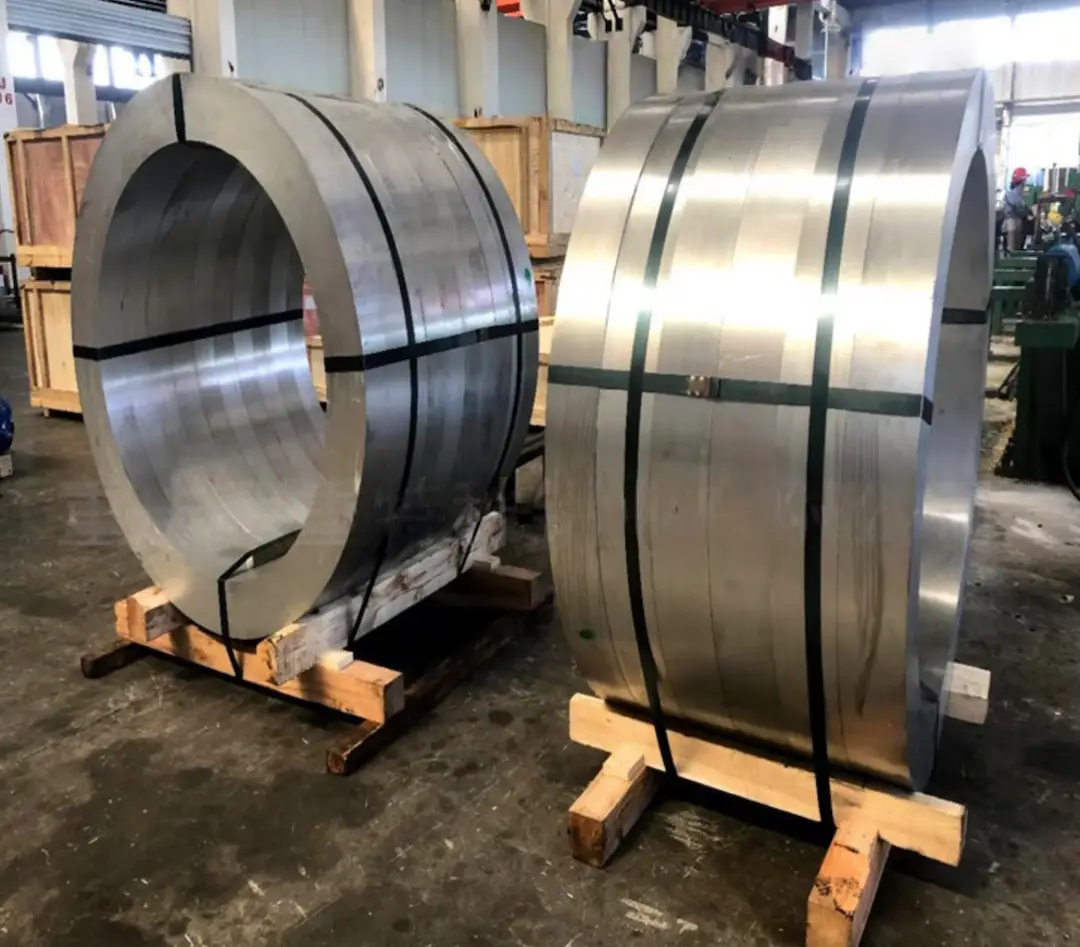

CNC Radial-Axial Ring Rolling for Seamless Aluminum Rolled Rings
Ring rolling rotates a preform under radial and axial rollers, extending OD and reducing wall thickness in one continuous seamless path. This is the standard process for seamless aluminum rolled ring requirements.
Concentricity, Roundness, and Thin-Wall Capability
Seamless rolled rings from qualified aluminum forged ring suppliers in China typically hold concentricity within 0.3–0.8 mm and roundness within 0.2–0.5 mm before final machining, depending on OD and equipment class. Thin-wall ratios below 8:1 OD-to-wall demand dedicated ring mills — confirm equipment capability before placing tooling deposits.
Large Diameter Seamless Rolled Rings: OD Limits and Lead Times
At the upper end of Able Materials’ capability — OD approaching 2500 mm — lead times extend due to ingot sourcing, multi-pass rolling, and stress-relief cycles. Budget 30–45 days for first production lots on large seamless formats.
Integrated Post-Forging: Heat Treatment, CNC Machining & Surface Finish
T6 / T652 Heat Treatment and Recorded HT Cycles
Solution heat treat, quench, and artificial aging (T6/T652) lock in mechanical properties for 6xxx and 7xxx rings. Export-oriented aluminum forging ring manufacturers document furnace charts, load configuration, and transfer times for audit trails.
Anodizing, Polishing, and Machining-Ready Delivery
Post-forge services include rough and finish CNC, boring, facing, and surface treatments such as anodizing or polishing. Buyers consolidating forging and machining with one Suzhou-based factory reduce logistics touches and simplify non-conformance escalation.
Aluminum Alloys for Forged Rings — Grades, Properties & Selection Guide
Able Materials works across 1xxx–8xxx series aluminum, matching alloy chemistry to environment, strength target, and weldability needs.
6xxx Series: 6061-T6 and 6082 Forged Aluminum Rings
6061-T6 balances strength, corrosion resistance, and machinability. 6082 offers slightly higher strength with good weldability for structural fabrications.
Mechanical Properties (Tensile, Yield, Elongation)
6061-T6 reference minimums: tensile ≥320 MPa, yield ≥270 MPa, elongation ≥10%. These values align with ASTM B247 and common GJB procurement specs for Chinese-sourced export orders.
General Structural, Automotive & Industrial Applications
6061-T6 rings appear in rail brackets, industrial couplings, and machined housings. For disc-shaped blanks cut from ring stock, see complementary aluminum forged disc offerings within the same alloy families.

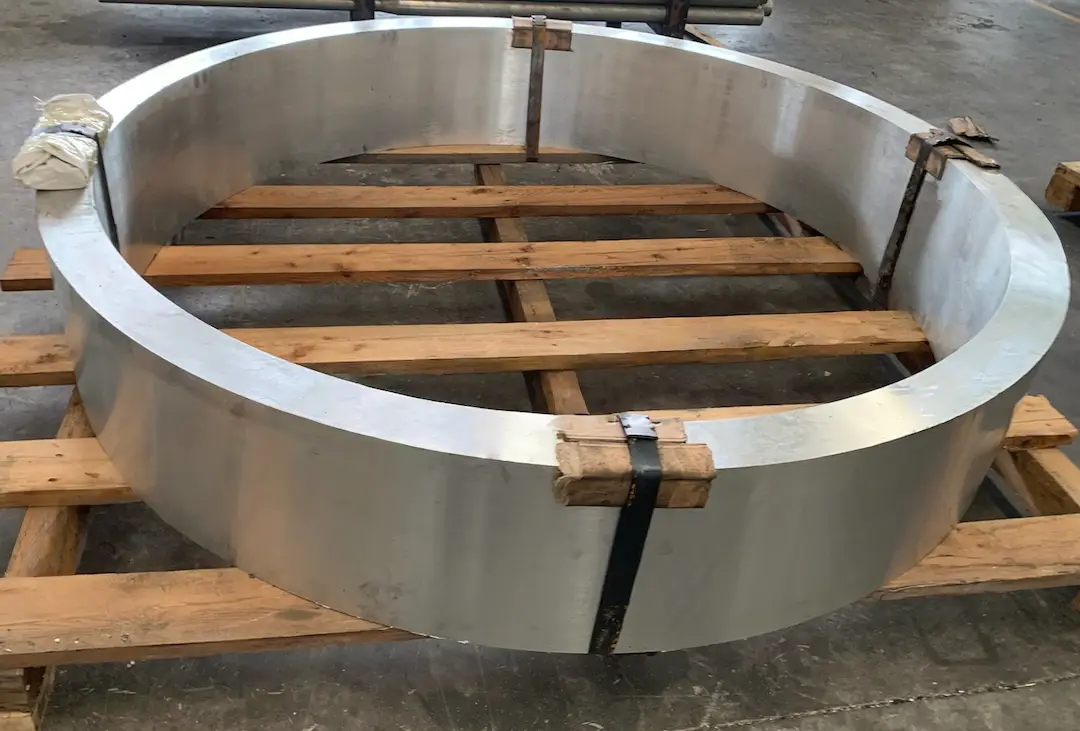

7xxx Series: 7075-T6, 7050 & Aerospace-Grade Forged Rings
7075-T6 is the default high-strength choice; 7050 offers improved toughness and stress-corrosion performance for aerospace structural programs.
High-Strength Performance for Aircraft and Defense Components
7075-T6 rings achieve ≥530 MPa tensile and ≥450 MPa yield with proper heat treatment — essential for launcher and airframe interfaces where margin above minimum yield is audited.
7075 vs 7050: Which Alloy Fits Your Ring Specification?
Choose 7075-T6 when maximum static strength and widespread spec familiarity matter. Move to 7050-T652 when fracture toughness and SCC resistance outweigh the modest strength trade-off. Your aluminum forged ring manufacturer should provide side-by-side MTC templates for both grades.
5xxx Series: 5083, 5086 & 5A06 Marine Aluminum Forged Rings
Corrosion Resistance for Shipbuilding and Offshore Equipment
5083-H111 and 5A06-H112 resist seawater corrosion and perform well in welded marine structures. Pair with UT on final wall and document alloy/temper on export packing lists.
2xxx Series: 2024 and 2219 Aluminum Alloy Forged Rings
Aerospace Structural Rings and High-Temperature Performance
2024 and 2219 support elevated-temperature stability for select aerospace paths. These alloys sacrifice some corrosion resistance — isolate them from uncoated marine exposure.
Dimensional Capabilities — Custom Sizes, Large OD & Tight Tolerances
Custom Aluminum Forged Ring Sizes from Drawing (OD × ID × Height)
Submit OD, ID, height (or length), alloy/temper, tolerance class, quantity, and destination port. Able Materials’ engineering team reviews forgeability, required process route, and estimated weight per piece before quoting.
How to Submit Drawings for a Fast Engineering-Led Quote
Include PDF drawings with GD&T on concentricity and face parallelism. Note whether delivery is as-forged, rough-machined, or finish-machined. Wholesale and repeat-order buyers should flag annual volume so the supplier can recommend open-die versus rolling upfront.

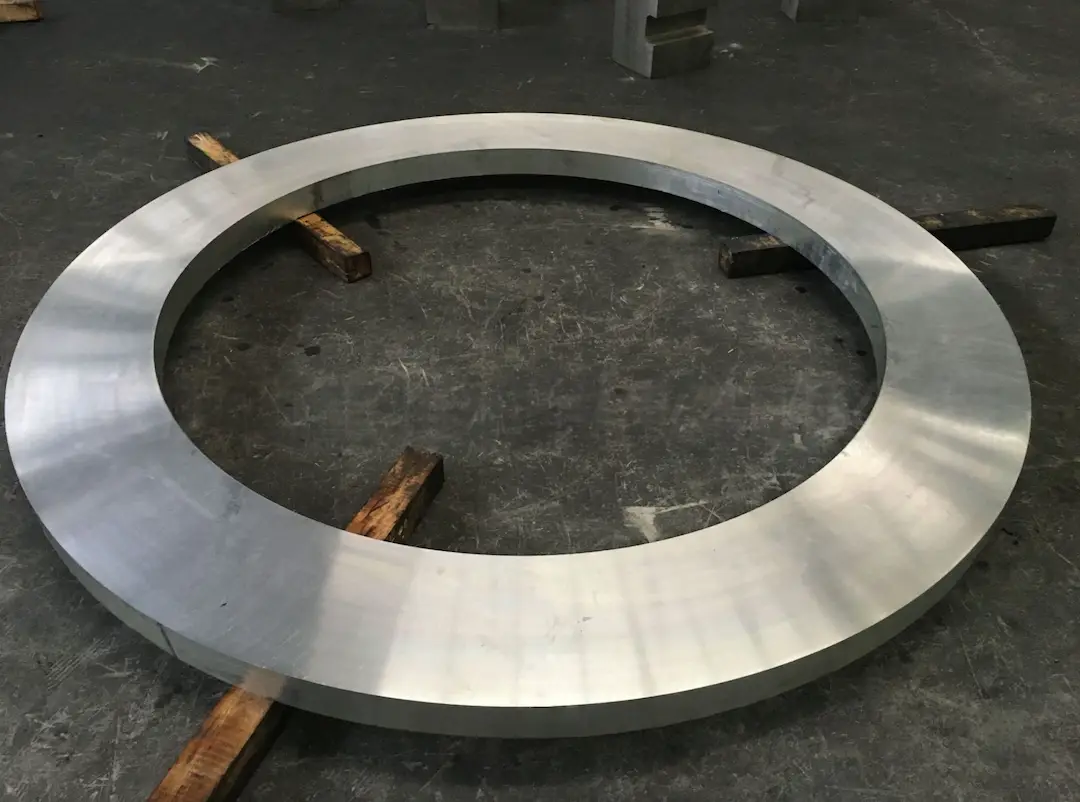

Large Diameter Aluminum Forged Rings Made in China
Published Size Envelope: OD, ID, Height & Weight per Piece
Reference production window: OD 500–2500 mm, length 50–1200 mm, 1xxx–8xxx alloys. A representative 7075-T6 thick-wall format at φ1900 × φ1200 × 85 mm sits comfortably inside this envelope. At roughly 2.7 g/cm³ alloy density, even mid-size rings reach hundreds of kilograms — weight drives freight and price more than per-kg forging cost.
Thick-Wall vs Thin-Wall Ring Design Limits
Thick-wall rings favor open-die; thin-wall seamless formats favor rolling. Attempting to roll excessively thick walls increases ovality risk and scrap rate.
Dimensional Control: Concentricity, Roundness & Tolerance Reports
CMM Inspection and Export-Ready Dimensional Documentation
CMM reports on OD, ID, face runout, and height are standard for qualified export orders. Third-party inspection witnessing is available on request for critical aerospace and energy programs.
Quality Standards, Certifications & Inspection for Export Buyers
ISO 9001, AS9100 & EN 9100 Certified Aluminum Forging Manufacturers
Certification Scope, Validity Dates & What Each Covers
ISO 9001:2015 governs general quality management. AS9100D and EN 9100 extend aerospace-specific controls across heat treat, traceability, and corrective action. Request certificate scope statements — confirm they explicitly cover aluminum forging rings, not only extrusion or trading.
Technical Standards: ASTM, GJB, YS/T & Customer-Specific Specs
ASTM B247 Aluminum Forged Ring Requirements
ASTM B247-2015 defines acceptable forging practice and typical property verification for aluminum forgings. Cite the revision year on POs to avoid ambiguity.
GJB & YS/T Standards for Chinese and Global Procurement
GJB2351-95 and YS/T479-2025 appear frequently in Chinese aerospace and defense supply chains. Dual-compliance programs should list both customer and statutory standards on the RFQ.
Inspection Methods: UT, PMI, Hardness & Third-Party Witnessing
Material Test Certificates (MTC) and Inspection Deliverables
Standard export packages include MTC per EN 10204 3.1, dimensional reports, and heat-treatment records. Add UT, PMI, and hardness maps when the application is pressure-boundary or safety-critical.
Ultrasonic Testing (UT) for Large Forged Aluminum Rings
UT on large OD rings detects subsurface discontinuities from ingot core or forging laps. Specify acceptance class and reference standard (e.g., AMS-STD-2154 style criteria) on the purchase order.
How to Choose a Reliable Aluminum Forged Ring Manufacturer in China
Factory Direct vs Trading Company: What to Verify Before You Buy
In-House Forging, Heat Treat, Machining & Inspection Checklist
Confirm press tonnage, ring-mill count, heat-treat furnace capacity, and CNC bay availability. A factory-direct Suzhou manufacturer with integrated operations — like Able Materials — controls schedule and quality without broker layers.
Site Audit Questions for Procurement and QA Teams
Ask for NCR rates on ring products, alloy segregation controls, and sample MTC packs from comparable OD ranges. Request a video walkthrough or on-site audit for the first programs above the defined spend thresholds.
Export Experience: Markets, Packaging & Logistics
Shipping to Europe, Australia & the Middle East
Established aluminum forged ring suppliers ship regularly to EU, AU, and Middle East destinations. Specify Incoterms — FOB Shanghai/Ningbo, CIF destination, or EXW Suzhou — early in negotiation.
Export Packaging, Alloy ID Tagging & Documentation
Rings ship in wooden crates with alloy/temper tags, heat numbers, and lifting points marked. Desiccant and VCI protection are recommended for marine freight on unfinished surfaces.
Red Flags vs Green Flags in China Aluminum Ring Forging Quotes
Missing Mechanical Data, Vague Standards, or No MTC Template
Reject quotes that omit alloy temper, minimum mechanical properties, or inspection scope. Green flags include published OD envelope, referenced standards, and a 24-hour engineering response on complete RFQs.
Pricing, MOQ, Lead Time & How to Request a Factory Quote
Aluminum Forged Ring Price per kg from China — What Drives Cost
Alloy Grade, Size, Process Route & Inspection Level
Per-kg price bands move with alloy premium (7xxx above 6xxx), forged weight, process complexity, and UT/witness scope. Cheap quotes that skip inspection or use unverified ingot sources carry downstream audit risk.
Open-Die vs Ring Rolling: Tooling and Unit Cost Impact
Ring rolling is efficient for seamless thin-wall formats at volume. Open-die suits prototypes and flanged geometries but adds reheating time. Closed-die shifts cost from piece price to amortized tooling.
MOQ, Sample Orders & Small-Batch Custom Forging
Production MOQ (e.g., 500 kg) vs Stock Item Minimums
Custom production MOQ is typically 500 kg per heat/specification. Sample or pilot pieces may be negotiable for qualified OEM programs evaluating forgeability before annual contracts.
Free Sample and Prototype Forging Policies
Prototype rings let design teams validate machining stock and assembly fit before tooling-heavy closed-die commitments. Clarify whether pilot pieces include representative HT and UT or as-forged only.
Lead Times for Custom Aluminum Forged Rings
Standard Production Window and Expedited Options
Standard custom lead time: 20–45 days after drawing approval and deposit. Large OD seamless rings and 7xxx ingot allocation sit at the longer end. Expedite options depend on furnace and mill scheduling.
Incoterms: FOB, CIF, EXW & Payment Terms for Export Orders
What to Include in Your RFQ for a 24-Hour Quote Response
Provide OD, ID, height, alloy/temper, standard, quantity, inspection level, Incoterm, and port. Able Materials targets a 24-hour engineering review on complete packages. Incomplete RFQs delay feasibility answers.
Beyond rings, many buyers consolidate related custom service forgings — aluminum forged bars, aluminum forged tube, and aluminum forged block formats — under one Suzhou supplier to simplify alloy heat tracking and certificate consolidation.
OEM & Custom Manufacturing — From Drawing to Machining-Ready Ring
OEM Aluminum Forged Ring Production per Customer Specification
DFM Support, Mold Flow & Forging Process Selection
Engineering reviews wall ratios, draft angles on closed-die concepts, and machinability of internal bores. DFM feedback before PO issuance reduces scrap on first heats.
One-Stop Supply: Forging + Heat Treatment + CNC + Surface Treatment
Reducing Supplier Count and Quality Risk in Global Programs
Single-source custom aluminum forging through Able Materials’ Suzhou factory eliminates split accountability between forge shop and machine shop — a common root cause of concentricity drift and late rework.
Case Examples: Real Dimensions, Alloys & Standards Delivered
Large OD 7075-T6 Thick-Wall Forged Ring (Spec Table)
| Parameter | Value |
|---|---|
| Grade | 7075-T6 |
| OD × ID × Height | φ1900 × φ1200 × 85 mm |
| Tensile / Yield / Elongation | ≥530 / ≥450 MPa / ≥8% |
| Standard | YS/T479-2025 |
| Process | Open-die forge + T6 HT + UT |
6061-T6 Cone Hoop / Structural Ring Project Summary
| Parameter | Value |
|---|---|
| Grade | 6061-T6 |
| OD × ID × Height | φ2080 × φ1829 × 1020 mm |
| Tensile / Yield / Elongation | ≥320 / ≥270 MPa / ≥10% |
| Standard | GJB2351-95 |
| Delivery | Rough-machined, CMM report included |
These reference formats illustrate the specification density export buyers should expect from a qualified China manufacturer — not generic catalog language.
Frequently Asked Questions
What is the MOQ for custom aluminum forged rings from a Chinese factory?
Production MOQ is typically 500 kg per specification. Pilot quantities may be arranged for OEM qualification programs.
Can Chinese manufacturers supply AS9100 / aerospace-grade forged rings?
Yes — when the supplier holds AS9100D with forging in scope and provides full HT/UT traceability. Verify certificate scope before audit submission.
6061-T6 vs 7075-T6: which alloy should I specify for my ring?
6061-T6 for general structural and machinability; 7075-T6 when maximum strength justifies higher alloy cost and stricter process control.
What inspections and certificates should I require for export orders?
Minimum: EN 10204 3.1 MTC, dimensional report, and heat-treatment records. Add UT and PMI for pressure-boundary or rotating applications.
How long does production take for large-diameter seamless rolled rings?
Plan 30–45 days for OD formats above 1800 mm, subject to ingot availability and inspection scope.
What information is needed to get an accurate aluminum forged ring quote?
OD, ID, height, alloy/temper, standard, quantity, inspection class, Incoterm, and destination port — submitted as a complete drawing package.
Get a Fast Quote from a China Aluminum Forged Ring Manufacturer
Submit Your OD, ID, Height, Alloy, Standard, Quantity & Destination Port
Upload drawings through Able Materials’ inquiry channel. Engineering confirms process route (open-die, closed-die, or ring rolling), estimated piece weight, and inspection plan.
Engineering Review, Feasibility Feedback & Formal Quotation Timeline
Complete RFQs receive feasibility feedback within 24 hours. Formal quotations follow alloy confirmation and schedule check against current press and furnace loading. Whether you need a single prototype ring or a wholesale annual program across aluminum forged rings and companion products, specification clarity is the fastest path to a defensible factory price from a Suzhou-based manufacturer you can audit, qualify, and scale with.
